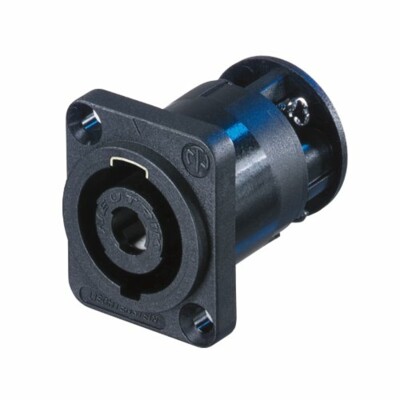

4 pole chassis connector, black D-size flange, countersunk thru holes, screw termination. This chassis connector is not airtight.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NL4MP-ST |
| Connection Type | speakON |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 1 GΩ (after dampheat) |
| Rated current per contact | 30 A rms continuous |
| Rated current per contact | 40 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Wiresize | 4 mm² |
| Wiresize | 12 AWG |
| Wiring | screw terminals |
| Locking device | Quick Lock |
| Chassis shape | D |
| Layout | standard hole position, thru holes |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn6) |
| Shell | Polyamide (PA 6 30 % GR) black |
| Environmental | |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
