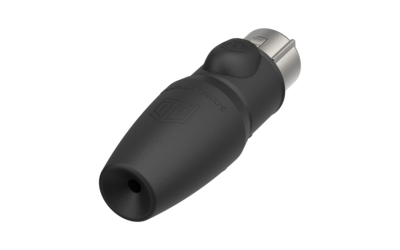

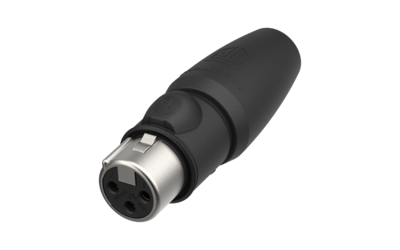

3 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP)
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable/chassis connector of the XLR TOP range (IP65).
Gold contacts are standard.
Enter part number and search Neutrik USA distributor's stock.
Product | |
Title | NC3FX1-TOP |
Connection Type | XLR |
Gender | female |
Electrical | |
Capacitance between contacts | ≤ 4 pF |
Contact resistance | ≤ 3 mΩ |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 GΩ (initial) |
Rated current per contact | 16 A |
Rated voltage | < 50 V |
Mechanical | |
Cable O.D. | 5.0 - 8.0 mm |
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 5000 mating cycles |
Wiresize (mm²) | max. 1.5 mm² |
Wiresize (AWG) | max. 16 AWG |
Wiring | Solder contacts |
Locking device | Latch lock |
Material | |
Bushing | UV-resistant rubber |
Contact plating | Gold (Au) over Nickel (Ni) |
Contacts | Bronze (CuSn8) |
Insert | Polyamide (PA66) |
Locking element | St3K32 (latch) / Ck 67 (spring) |
Shell | Zinc diecast (ZnAI4Cu1) |
Shell plating | Nickel |
Strain relief | Polyacetal |
Sealing jacket | UV-resistant rubber |
Environmental | |
Flammability acc. to UL94 | V0 (insert) |
Standard compliance | IEC 61076-2-103 |
Protection class acc. to OEC 60529 | IP 65 (mated) |
Solderability standard | IEC 60068-2-20 |
Temperature range | -30 °C to +80 °C |
Polltion degree acc. to IEC 60664-1 | II |
