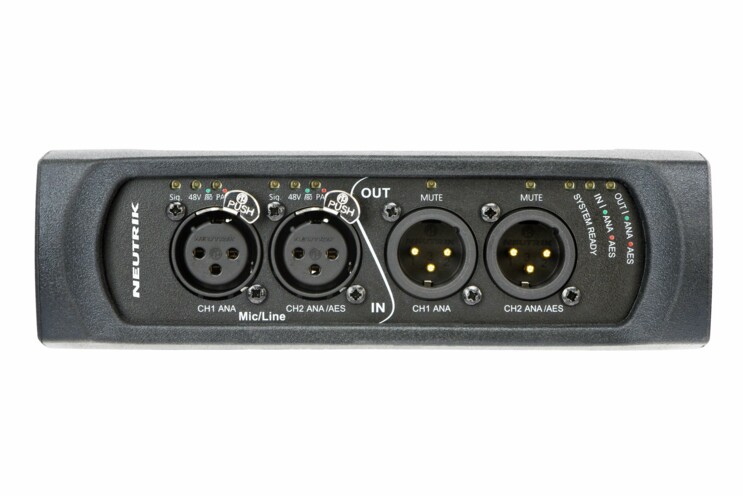

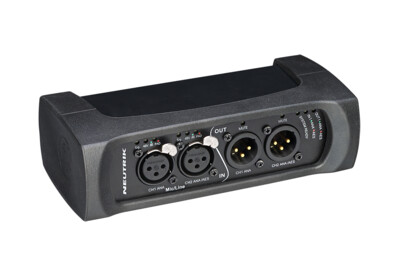

NA2-IO-DPRO

*DISCONTINUED*

The NA2-IO-DPRO is a 2IN, 2OUT breakout box designed to connect legacy audio equipment with the Dante^® network. It features high-quality microphone preamps and 2 Dante^®ports for either redundant setup or daisy chaining. Audio parameters are adjusted either by Neutrik's DPRO controller or a number of common control software.

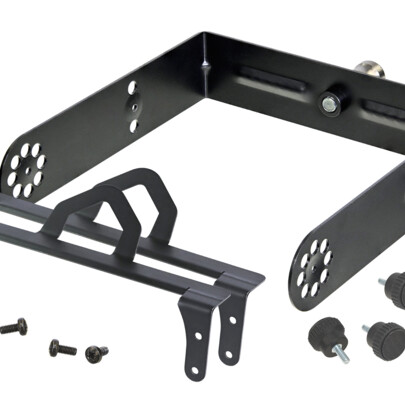

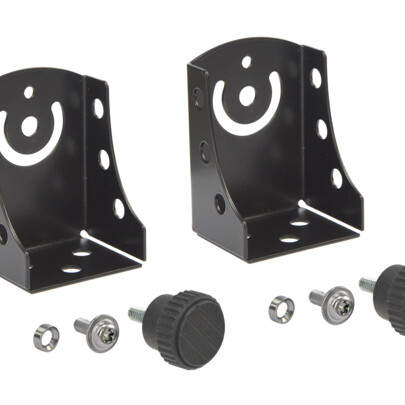

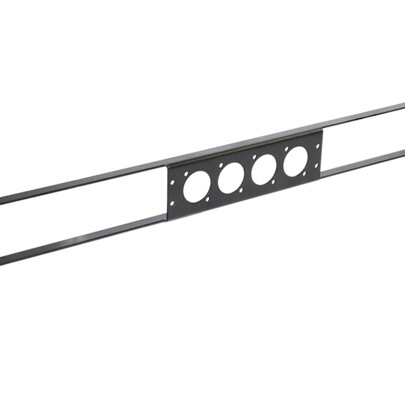

All connectors are lockable and, together with the removable rubber protection, offer a reliable solution for tough stage conditions. With optional mounting brackets or a rack panel, the box can be mounted below tables, in floor boxes, racks or on a truss.

Download Data Sheet

Selection of topics

Features & Benefits Downloads Distributor Stock Search Accessories

Download Data Sheet

Features & Benefits

Lockable audio and network connections
Connect up to two analog line or mic signals to a Dante^® network
Connect AES/EBU signals to a Dante^® network and provide an AES/EBU signal from the Dante^® network
Feed non Dante^® ready amplifiers, speakers or mixing desks with signals from the Dante^® network

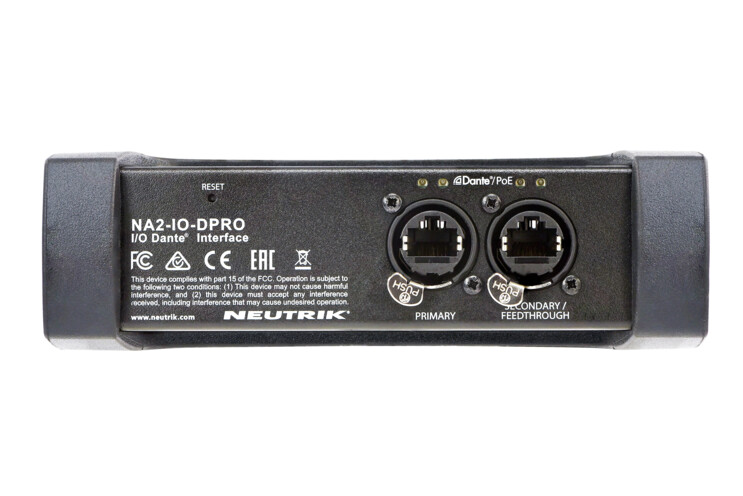

Primary and Secondary Dante^® ports
Setting of all audio parameters via the DPRO controller software. Yamaha CL/QL mixer, QSYS plug in and Crestron module
Different mounting options (rack, truss, floorbox, table mounting)
Requires a Power over Ethernet switch or a PoE injector (802.3 af/at/bt)

For Dante^® related questions, refer to the Audinate^® website: www.audinate.com. The Audinate^® website features a wealth of manuals, teaching material, FAQs and videos.

Please see the Technical Specifications in the NA2-IO-DPRO brochure.

Audinate^® is a registered trademark of Audinate^® Pty Ltd. Dante^® is a trademark of Audinate^® Pty Ltd.
