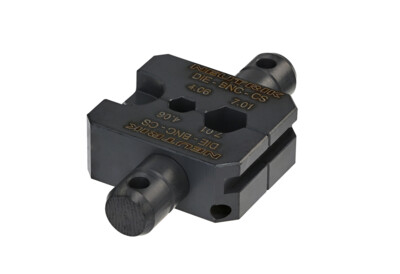

DIE-BNC-CS

Crimp tool die for HX-BNC

Pin crimping: 1.6 mm
Shield and jacket: HEX crimp 4.06 mm (A), 7.01 mm (B)

Selection of topics

Downloads Distributor Stock Search Technical Information Accessories

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title	DIE-BNC-CS

Mechanical
Crimp size	4.06, 7.01 Hex crimp (shield) acc. MIL22520/5-39(B), acc. IEC 60803 (die designation F)
Crimp size (pin)	1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Wiresize

HX-BNC
