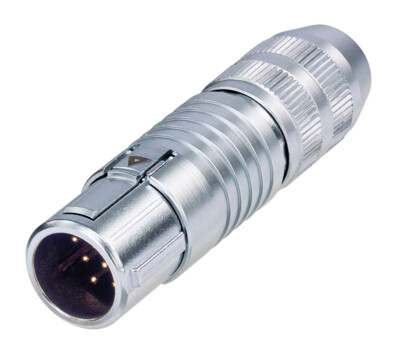

12 pole male cable connector, chuck type strain relief, solder contacts
The miniCON with its flexible and compact design is perfectly suitable for multipin/industrial applications. The rugged all metal miniature connector offers a push-pull locking device and stands out by an excellent cost/performance ratio.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | MSCM12 |
| Connection Type | miniCON |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 8 mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 0.5 GΩ |
| Rated current per contact | 3 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Cable O.D. | 3 - 5 mm (grey chuck), 5 - 7 mm (white chuck) |
| Cable retention | > 20 N |
| Insertion force | < 25 N |
| Wiresize | 0,5 mm² |
| Wiresize | 20 AWG |
| Wiring | Solder contacts |
| Locking device | Push-Pull |
| Material | |
| Contact plating | 0.2 µm AuCo |
| Contacts | Brass (CuZn35Pb2) |
| Insert | Polyamide (PA 6.6) |
| Shell | Zinc diecast / Brass (ZnAl4Cu1 / CuZn39Pb3) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 V-0 |
| Protection class | IP 5X |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
