PHASE OUT
direct replacement / successor: NAC3F-TRUE1-L

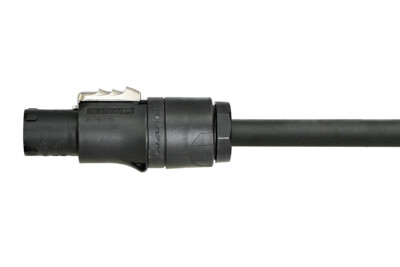

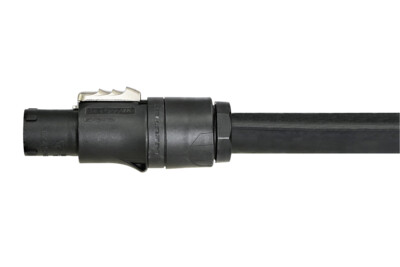

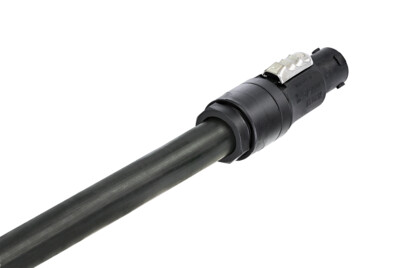

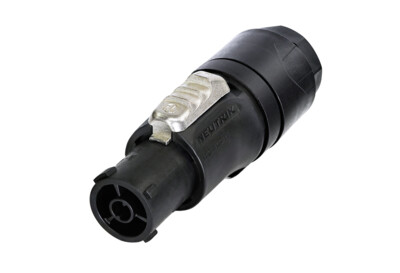

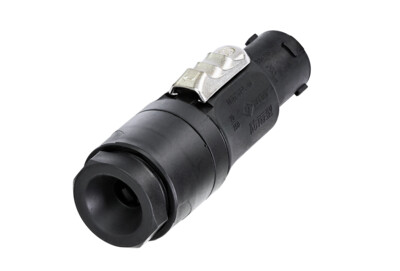

Locking female cable connector for big power cord with outer diameters from 10–16 mm (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3, SOOW 14/3 and SJOOW 12/3. Certified according to EN/UL & CSA 60320-1.
Keyed for Power IN, screw terminals, IP65, up to 16 A (USA: 20A)
The powerCON TRUE1 TOP is a single-phase connector for outdoor applications with breaking capacity (CBC) for outdoor applications.
| Question | Answer |
| How are the certifications different to the current version NAC3*X-W-TOP? | EN certification: Both versions are certified according to EN 60320-1. The new L-version however is certified for large cables as follows: H07RN-F 3G 2,5 mm² The old version is certified for cable types: H07RN-F 3G 1,5 mm² and H05VV-F 3G 1,0 - 2,5 mm² UL certification: The new L-version is certified according to UL 60320-1 for cables SOOW 12/3 and SOOW 14/3. The old version is certified according to UL 498. JET certification: Both versions are JET certified. |
| When is the IEC 60799 relevant? | This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections. |
| Why is the bushing loose in one direction? | This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required. |
| Product | |
| Title | NAC3FX-W-TOP-L |
| Connector series | powerCON TRUE1 TOP |
| Electrical | |
| Dieletric strength | 2.8 kVac |
| Insulation resistance | > 0.1 GΩ |
| Number of electronical contacts | 2 + PE |
| Rating Europe | IEC EN 60320-1: 16 A 250 V AC |
| Certified with cable types: H07RN-F3G2.5 | |
| Rating USA | UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC |
| Certified with cable types: | |
| - SOOW 12/3, SOOW 14/3 | |
| - SJOOW 12/3 |
| Mechanical | |
| Cable O.D. | 10 – 16 mm (0.39 – 0.63 inches) |
| Lifetime | Typically 5’000 mating cycles |
| Wire size (mm²) | 2.5 mm² |
| Wire size (AWG) | 14 – 12 AWG |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuSn0.2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | ZuAl4Cu1 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 V-0 |
| Protection class | IP65, UL50E enclosure type 4 (mated) |
| Temperature range | -30 °C to +80 °C |
