*Discontinued* Please see successor powerCON TRUE1 TOP series. Connectors of both series are fully compatible.

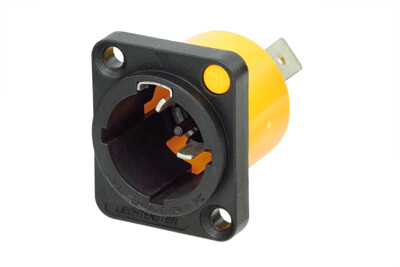

Appliance inlet connector, 1/4'' flat tab terminals, without insulation divider
The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Appliance inlet
Enter part number and search Neutrik USA distributor's stock.
Product | |
Title | NAC3MPX-WOT |
Electrical | |
Contact resistance | ≤ 3 mΩ |
Dielectric strength | 4 kVdc / 2.8 kVac |
Insulation resistance | > 0.1 GΩ (after damp heat test) |
Number of electrical contacts | 2 + PE |
Rated current per contact | 16 A (USA: 20A) |
Rated voltage | 250 V ac |
Mechanical | |
Lifetime | > 5000 mating cycles |
Wiresize | 2.5 mm² |
Wiresize | 12 AWG |
Material | |
Contact plating | 2 µm Ag |
Locking element | Stainless steel |
Shell | Polyamide (PA 6.6) |
Contacts | Spring Copper (CuSn0.2) |
Environmental | |
Flammability | UL 94 V-0 |
Temperature range | -30 °C to +80 °C |
