PHASE OUT
direct replacement / successor: NAC3M-TRUE1-S

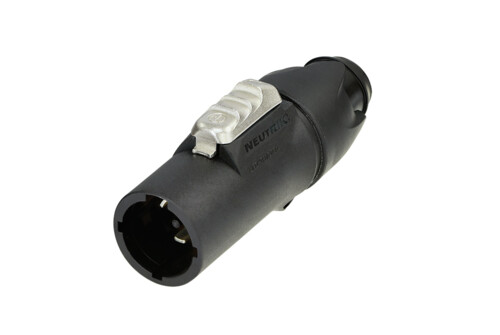

Locking male cable connector, screw terminals
The powerCON TRUE1 TOP is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NAC3MX-W-TOP |
| Electrical | |
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | 0,1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electronical contacts | 2 + PE |
| Rating Europe | USA: 20 A (16 A rms) |
| Rating USA | 250 V ac |
| Mechanical | |
| Cable O.D. | 6 - 12 mm |
| Lifetime | > 5000 mating cycles |
| Wiresize | 1.0 - 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | CuNi1Si0.2 |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | ZuAl4Cu1 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 V-0 |
| Temperature range | -30 °C - +80 °C |
