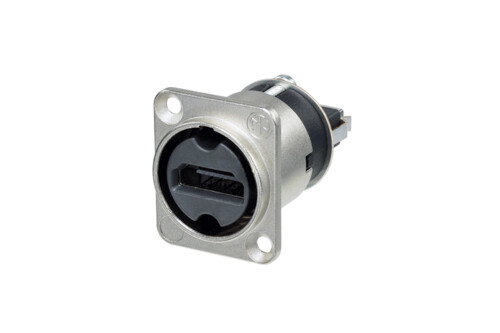

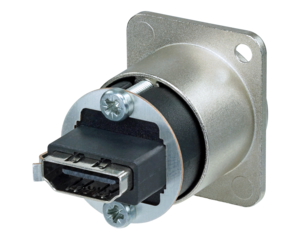

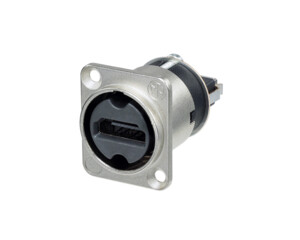

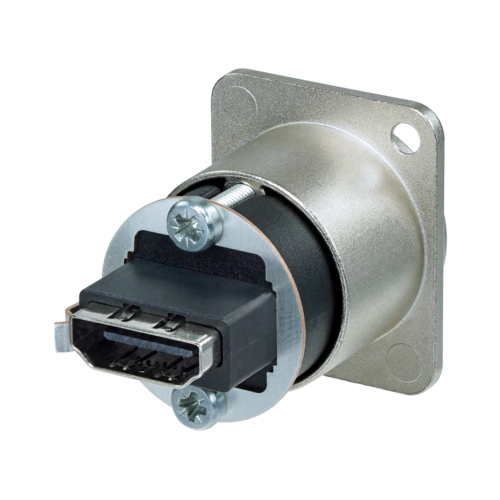

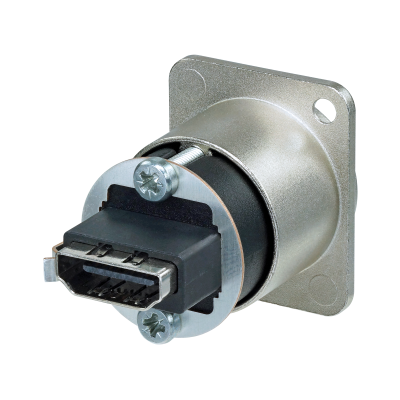

HDMI feedthrough adapter, D-shape housing.
Compatible with both standard HDMI patch cables and Neutrik’s locking, pre-terminated NKHDMI-* cable assemblies.
Easily integrated into video networks, Neutrik's HDMI solutions transmit video signals at the full HDMI 2.0 specification with cables up to 3 meters in length.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NAHDMI-W |
| Connection Type | Adapter |
| Gender | female |
| Mechanical | |
| Wiresize | |
| Locking device | Push-Pull |
| Mounting direction | Front or rear mounting (max 2 mm panel thickness) |
| Chassis shape | D |
| Lifetime | > 1000 mating cycles |
| Material | |
| Contact plating | Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Flammability | UL 94 V-0 |
| Standard compliance | HDMI 2.0 |
| Temperature range | -25 °C to +85 °C |
