NAO4*W-A
Weatherproof opticalCON QUAD coupler (adapter) for cable extensions.
 |
 |
 |
|

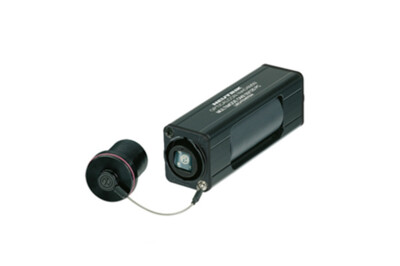

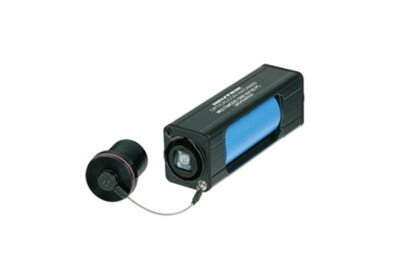

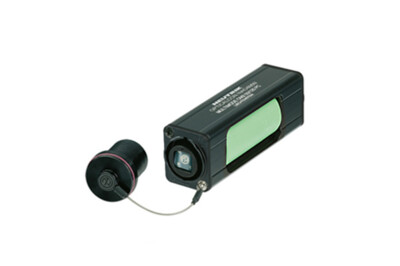

| Product | NAO4MW-A | NAO4SW-A | NAO4SAW-A |
| Fiber Mode | multi-mode PC | single-mode PC | single-mode APC |
| Color Coding | Black | Blue | Green |
Cross wiring on request.
Selection of topics
Downloads
Distributor Stock Search
Technical Information
Distributor stock search
Enter part number and search Neutrik USA distributor's stock.
Technical Information
| Product | |
| Title | NAO4*W-A |
| Connection Type | Adapter |
| Gender | female |
| Mechanical | |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 1000 mating cycles |
| Locking device | Push-Pull |
| Material | |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | AlMgSi 0.5, black plated |
| Split sleeve | ceramics |
| Environmental | |
| Temperature range | -30 °C to +80 °C |
| Protection class | IP65 |
| Optical | |
| Insertion loss | < 0.4 dB / connection |
| Optical connector | LC |
