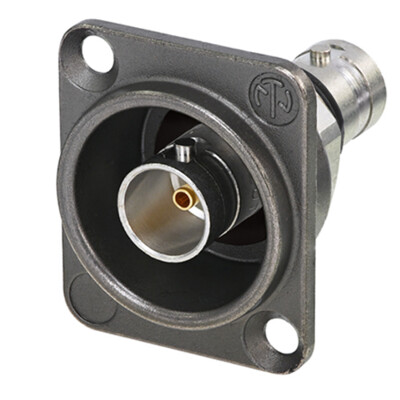

Isolated UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing
Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing.
Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
For more details see Neutrik UHD BNC White Paper.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NBB75DFIX |
| Connection Type | BNC 75 Ω |
| Gender | female |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1.5 kVdc |
| Impedance | 75 Ω |
| Insulation resistance | > 5 GΩ |
| Rated voltage | < 50 V |
| VSWR | ≤1.06 / >30 dB up to 6 GHz ≤1.13 / >24 dB up to 12 GHz ≤1.22 / >20 dB up to 18 Ghz |
| Signal type | UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV |
| Mechanical | |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Material | |
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) |
| Insert | PTFE |
| Shell | Polyacetal (POM) (insulation shell) |
| Shell plating | Antraloy |
| D-shape housing | Zinc diecast (ZnAl4Cu1) |
| Environmental | |
| Temperature range | -30 °C to +85 °C |
