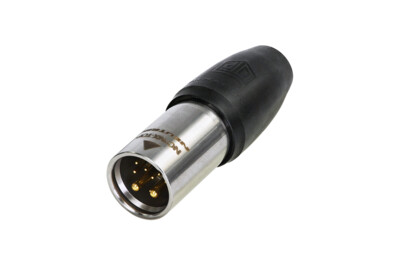

8+2 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts
The X-TOP series is a "heavy-duty" XLR cable connector series for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NC10MX-TOP |
| Connection Type | XLR |
| Gender | Male |
| Electrical | |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Number of electronical contacts | 8 + 2 |
| Rated current per contact | 16 A (power pins), 3 A (data pins) |
| Rated voltage | 50 V |
| Cable shield - shell connection: | choosable |
| Transmission performance | CAT 5e |
| Mechanical | |
| Cable O.D. | 7.0 - 10.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | 2.5 mm²/<1 mm² |
| 8 x 24 AWG + 2 x 16AWG | |
| Type of terminations | Solder contacts |
| Locking device | Latch lock |
| Material | |
| Bushing | UV-resistant rubber |
| Contact plating | Gold (Au) over Nickel (Ni) |
| Contacts | Brass |
| Insert | Polyamide |
| Locking element | St3K32 (latch) / Ck 67 (spring) |
| Shell | Zinc diecast |
| Shell plating | Nickel |
| Strain relief | Polyacetal |
| Sealing jacket | UV-resistant rubber |
| Environmental | |
| Flammability acc. to UL94 | V-0 (insert) |
| Standard compliance | IEC 61076-2-103 |
| Protection class acc. IEC 60529 | IP65 (mated) |
| Solderability acc. to | IEC 60068-2-20 |
| Temperature range | -30 °C to +80 °C |
| Pollution degree | II |
