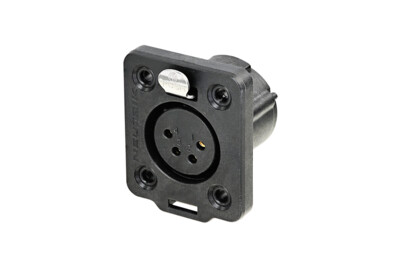

4 pole female chassis connector, TRUE OUTDOOR PROTECTION (TOP)
The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NC4FDX-TOP |
| Connection Type | XLR |
| Gender | Female |
| Electrical | |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 10 A |
| Rated voltage | 50 V |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Material | |
| Contact plating | Gold (Au) over Nickel (Ni) |
| Contacts | Brass |
| Insert | Polyamide |
| Locking element | Stainless steel |
| Gasket | TPE |
| Shell | Polyamide |
| Environmental | |
| Flammability acc. to UL94 | V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class acc. IEC 60529 | IP65 |
| Solderability acc. to | IEC 60068-2-20 |
| Temperature range | -30 °C to +80 °C |
| Pollution degree acc. to IEC 60664-1 | II |
