NE8FBV-C5-LED

NE8FBV-C5-LED

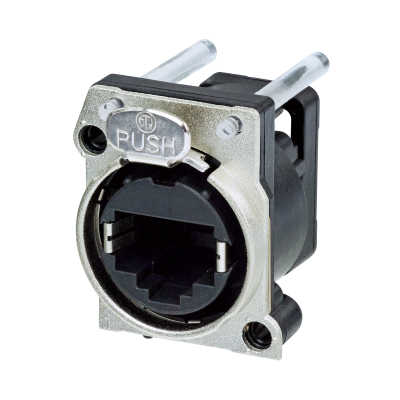

Vertical PCB mount RJ45 receptacle, CAT5e, two light pipes for through hole LEDs, B-Series cutout with latch lock, max. panel thickness 3 mm

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The B-Series offers a space saving design and a rugged metal front plate.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables..

Download Data Sheet

Features & Benefits

  • Vertical PCB design at 24 mm distance to front panel – fits the widely accepted industry standard dimension for XLRs, 1/4" jacks etc.
  • Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Ground panel connection
  • PoE type 4 class 8 (100W) acc. IEEE 802.3bt
  • CAT5e according to ISO/IEC 11801 and TIA/EIA 568A/B

Downloads

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NE8FBV-C5-LED
Gender female
Electrical
Contact resistance < 50 mΩ
Dielectric strength 1 kVdc kVdc
Frequencyrange 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage ≤ 57 V
Transmission performance CAT5e acc. to TIA/EIA 568A/B component specifications
CAT5e acc. to ISO/IEC 11801 component specifications
Power over Ethernet PoE type 4 class 8 (100W) acc. IEEE 802.3bt
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Panel thickness max. 3 mm (0.12'')
Wiresize
Wiring vertical PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape B
Recommended LED-height 5.6 mm (2.2“)
The final LED brightness depends on the actual LED height and the angel of radiation. Subject to be tested!
Mounting A-Screw
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Shell PBT D202G30
Environmental
Flammability UL 94 V-0
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)
IEC 60603-7-3 Ed.2.0 (2010-04)
IEC 60512-99-002 Ed.2.0 (2022-01)
IEC 60512-9-3 (2011-06)

Accessories

A-SCREW
A-SCREW-1-8
