NE8FDV-YK-B

NE8FDV-YK-B

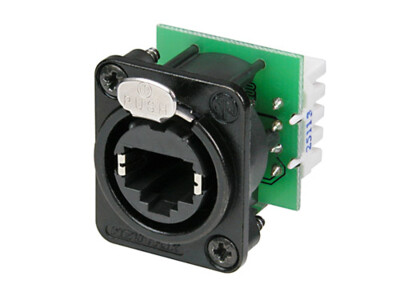

Panel mount receptacle with IDC punch down terminals, black D-sized metal flange with latch lock, max. panel thickness 4 mm, mounting screws included

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Download Data Sheet

Features & Benefits

  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801
  • Selectable ground - panel connection
  • Easy and quick mounting using Krone punch down terminals
  • PoE type 3 class 6 (60W) acc. IEEE 802.3bt

Downloads

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NE8FDV-YK-B
Gender female
Electrical
Contact resistance < 50 mΩ
Dielectric strength 1 kVdc
Frequencyrange 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1,5 A
Rated voltage ≤ 57 V
Transmission performance CAT5e acc. to TIA/EIA 568C channel specifications
CLASS D acc. to ISO/IEC 11801 channel specifications
Standard compliance PoE type 3 class 6 (60W) acc. IEEE 802.3bt
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Panel thickness max. 4 mm 0.16'
Wiresize 0.14 - 0.5 mm²
Wiresize 26 - 20 AWG
Locking device Latch lock
Chassis shape D
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Insert PBTP 15 % GR
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black KTL
Strain relief CuZn35Pb2, Tin plated
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)
IEC 60603-7-3 Ed.2.0 (2010-04)
IEC 60512-99-002 Ed.2.0 (2022-01)
IEC 60512-9-3 (2011-06)
