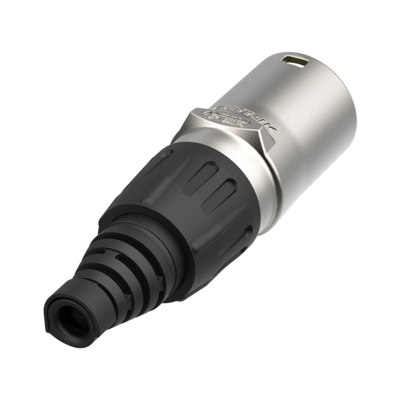

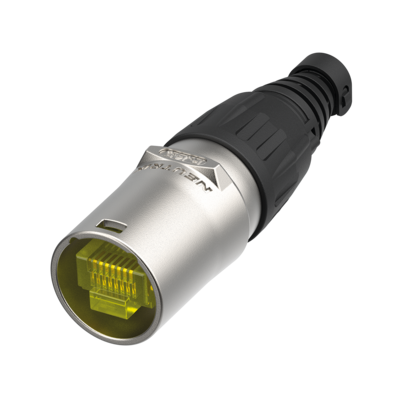

RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of nickel shell, bushing and boot. Packed with two cable protection elements for cable diameter up to 8 mm. Cable connector carrier does not include a RJ45 plug.
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.
ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NE8MX |
| Gender | male |
| IMPORTANT | Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user! |
| Mechanical | |
| Cable O.D. | 4.5 mm - 8 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Material | |
| Boot | Polyamide (PA 6) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Temperature range | -30 °C to +80 °C |
