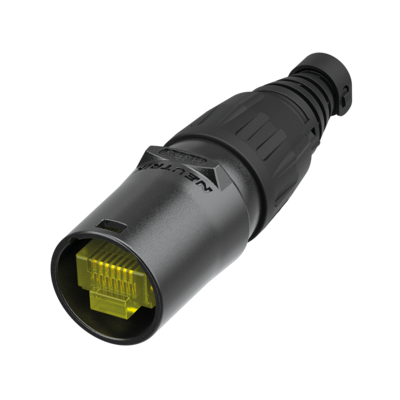

etherCON - NE8MX-B

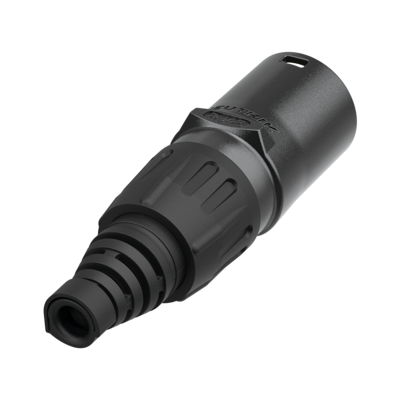

etherCON - NE8MX-B rear
etherCON - NE8MX-B
etherCON - NE8MX-B rear

NE8MX-B

RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell, bushing and boot. Packed with two cable protection elements for cable diameter up to 8 mm. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Download Data Sheet

Features & Benefits

  • The RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
  • Allows assembly of pre-assembled conventional RJ45 cables
  • Accessories include color coded boots in 9 standard colors

Downloads

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NE8MX-B
Gender male
IMPORTANT Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!
Mechanical
Cable O.D. Up to 8 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Material
Boot Polyamide (PA 6)
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
