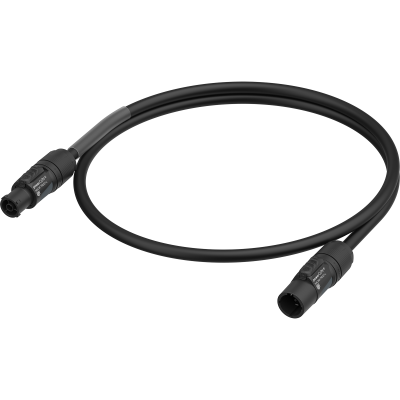

powerCON TRUE1 - Interconnection cordset rewirable
NEUTRIK® outdoor cables with powerCON® TRUE1® TOP and high-quality H07RN cable. Ideally suited for stages and events.
Compliant with all relevant versions of IEC 60799.
Selection of topics
Features & Benefits
Downloads
Article Variations
Features & Benefits
- NKPH power cables assemblies are compliant with IEC 60799
- powerCON® TRUE1® TOP power connectors are certified according to the EN60320-1
- Connectors with Breaking Capacity (CBC)
- IP65 rated when intermated with NEUTRIK® powerCON® TRUE1® TOP
- High-quality rubber cables from European manufacturers
Downloads
- Drawing NKPH1-A2A1
- Drawing NKPH1-A2A1
- Drawing NKPH2-A2A1
- Drawing NKPH2-A2A1
- NEUTRIK power cords premium series Broschure
- BDA 686 V2 - Manual - CONTRIK powerCON cables - NKPH - EN
- BDA 676 - Manual - CONTRIK powerCON cables - NKPH - DE
- CE Conformity declaration NKPH - CEU-PGD-0006-02
- EU Declaration of Conformity
Article Variations
| Article name | Details | Order code |
| NKPH03-A2A1-M0100 | 1 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027564 |
| NKPH03-A2A1-M0150 | 1.5 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1038157 |
| NKPH03-A2A1-M0200 | 2 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027565 |
| NKPH03-A2A1-M0300 | 3 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1038158 |
| NKPH03-A2A1-M0500 | 5 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027566 |
| NKPH03-A2A1-M1000 | 10 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027567 |
| NKPH03-A2A1-M1500 | 15 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027568 |
| NKPH03-A2A1-M2000 | 20 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027569 |
| NKPH04-A2A1-M0100 | 1 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027570 |
| NKPH04-A2A1-M0150 | 1.5 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1038159 |
| NKPH04-A2A1-M0200 | 2 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027571 |
| NKPH04-A2A1-M0300 | 3 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1036431 |
| NKPH04-A2A1-M0500 | 5 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027572 |
| NKPH04-A2A1-M1000 | 10 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027573 |
| NKPH04-A2A1-M1500 | 15 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027574 |
| NKPH04-A2A1-M2000 | 20 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027575 |
Type Descriptions
CABLE TYPE 03 / 04 - TITANEX NEXANS
