powerCON TRUE1 - Schuko cordset rewirable
NEUTRIK® cables with molded Schuko main plug to powerCON® TRUE1® TOP and high-quality H07RN cable. Ideally suited for stages and events.
Compliant with all relevant versions of IEC 60799.
Selection of topics
Features & Benefits
Downloads
Article Variations
Features & Benefits
- NKPH power cables assemblies are compliant with all relevant versions of IEC 60799
- powerCON® TRUE1® TOP power connectors are certified according to IEC 60320-1
- Connectors with breaking capacity (CBC)
- IP65 rated when intermated with NEUTRIK® powerCON® TRUE1® TOP
- High-quality rubber cables from European manufacturers
Downloads
- Drawing NKPH1-MFA1
- Drawing NKPH1-MFA1
- Drawing NKPH2-MFA1
- Drawing NKPH2-MFA1
- NEUTRIK power cords premium series Broschure
- BDA 676 - Manual - CONTRIK powerCON cables - NKPH - DE
- BDA 686 V2 - Manual - CONTRIK powerCON cables - NKPH - EN
- CE Conformity declaration NKPH - CEU-PGD-0006-02
- EU Declaration of Conformity
Article Variations
| Article name | Details | Order code |
| NKPH01-MFA1-M0150 | 1.5 m 3x1.5 mm² H07RN Schuko "E+F" (m) powerCON® TRUE1® TOP (f) | 1027576 |
| NKPH01-MFA1-M0300 | 3 m 3x1.5 mm² H07RN Schuko "E+F" (m) powerCON® TRUE1® TOP (f) | 1036429 |
| NKPH02-MFA1-M0150 | 1.5 m 3x2.5 mm² H07RN Schuko "E+F" (m) powerCON® TRUE1® TOP (f) | 1027577 |
| NKPH02-MFA1-M0300 | 3 m 3x2.5 mm² H07RN Schuko "E+F" (m) powerCON® TRUE1® TOP (f) | 1036430 |
| NKPH02-A2MF-M0150 | 1.5 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) Schuko (f) | 1027578 |

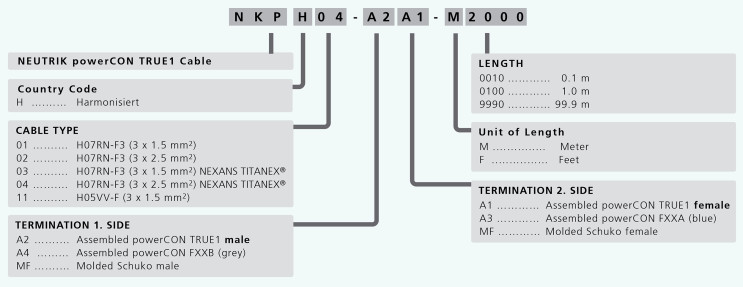

Type Descriptions
CABLE TYPE 03 / 04 - TITANEX NEXANS
powerCON TRUE1 - Schuko cordset rewirable
