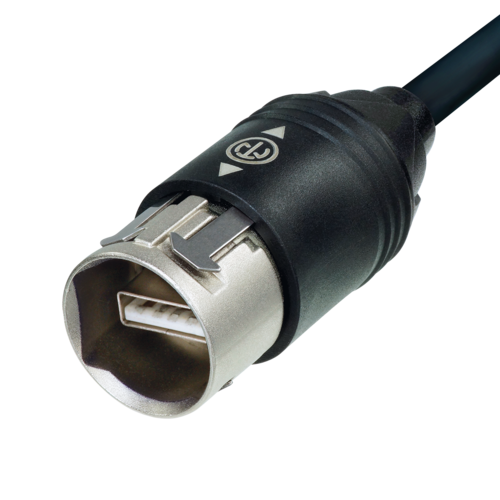

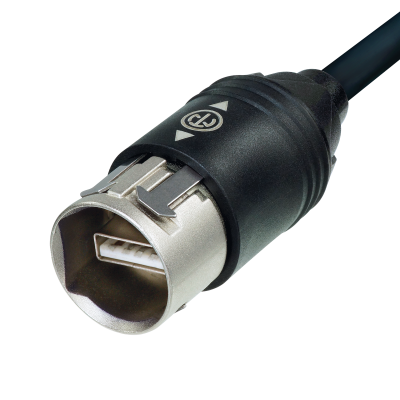

The USB 2.0 patch cables with overmolded flex relief and rugged metal cable carrier fit and lock with NAUSB-W-*. One cable end offers an USB connector type A, the other side offers a USB connector type B.
* The cables are available in 1 m, 3 m and 5 m cable length.
 |
 |
| NKUSB-* side 1 with USB type A | NKUSB-* side 2 with USB type B |
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NKUSB-* |
| Gender | male |
| Mechanical | |
| Wiresize | |
| Lifetime | > 1000 mating cycles |
| Locking device | Push-Pull |
| Overall cable diameter | 5,3 mm |
| Material | |
| Contact plating | Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | PVC |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Cable jacket material | PVC |
| Environmental | |
| Flammability | UL 94 V-0 |
| Standard compliance | USB 2.0 |
| Temperature range | -25 °C to +85 °C |
