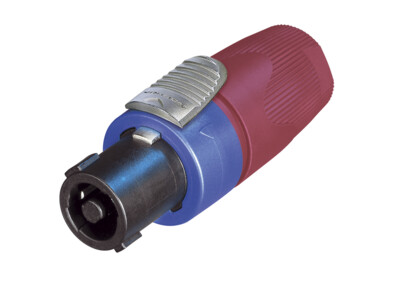

4 pole cable connector, chuck type strain relief, red bushing
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NL4FX-2 |
| Connection Type | speakON |
| Gender | female |
| Electrical | |
| Contact resistance | < 2 mΩ (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 1 GΩ (after dampheat) |
| Rated current per contact | 40 A rms continuous |
| Rated current per contact | 50 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Cable O.D. | 7 - 14.5 mm |
| Cable retention | ≥ 220 N (subject to cable O.D. and material) |
| Lifetime | > 5000 mating cycles |
| Wiresize | 4 mm² / 6 mm² (screw type terminals/soldering) |
| Wiresize | 12 AWG / 10 AWG |
| Wiring | screw type terminals or soldering |
| Locking device | Quick Lock (latch) |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | PBTP 20 % GR |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | PBTP 20 % GR |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
