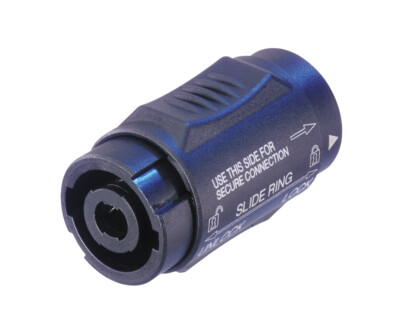

Lockable 4 pole speakON adapter
Links two NL2/4F*s together for cable extension. Changes gender to male when permanently locked on the cable.

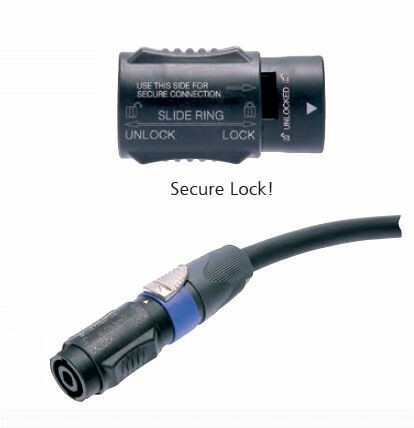

Features permanent secure connection on a speakON cable connector using 2nd lock. Can be permanently attached to NL2/4F*.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NL4MMX |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 1 GΩ (after dampheat) |
| Rated current per contact | 15 A rms continuous |
| Rated current per contact | 30 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V (Insulation) |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Locking device | Quick Lock |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6 30 % GR) |
| Shell | Polyamide (PA 6 30 % GR) |
| Environmental | |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
