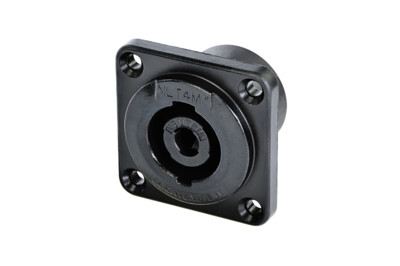

NLT4MPXX-BAG

4 pole male chassis connector, black metal housing, ¼“ flat tabs, countersunk thru holes

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Features & Benefits

IEC 61984 certified, IEC 62368-1 compliant
Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
Uses precise “Quick Lock” system
Weatherproof built-in gasket meets IP 54 protection class in mated condition
Airtight design - optimized for speaker applications

Technical Information

Product
Title	NLT4MPXX-BAG
Gender	male

Electrical
Contact resistance	< 2 mΩ
Dielectric strength	2.8 kVac
Insulation resistance	>0.1 GΩ (after dampheat)
Rated current per contact	30 A rms continuous
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an AC mains or power supply connector!

Mechanical
Lifetime	> 5000 mating cycles
Termination	¼" flat tabs
Locking device	Quick Lock
Mounting direction	Rear / front mounting
Chassis shape	square G-size flange
Layout	four thru holes
