* DISCONTINUED *
Replaced by:

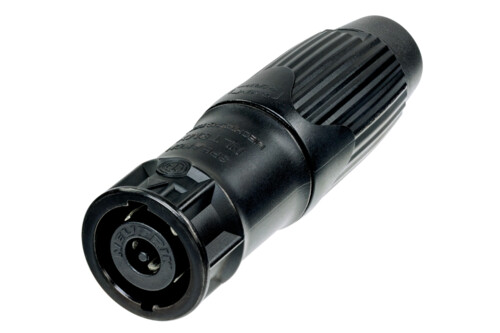

8 pole male cable connector, black-chrome metal housing, chuck type strain relief, ¼" flat tabs
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NLT8MX-BAG |
| Electrical | |
| Contact resistance | < 2 mΩ (after lifetime) mΩ |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 10 GΩ |
| Rated current per contact | 40 A rms continuous |
| Rated current per contact | 50 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Cable O.D. | 8 - 20 mm |
| Cable retention | ≥ 220 N (subject to cable O.D. and material) |
| Lifetime | > 5000 mating cycles |
| Wiresize | 6 mm² |
| Wiresize | 10 AWG |
| Wiring | flat tabs for 1/4'' (FASTON® 6.3 x 0.8 mm) or soldering |
| Environmental | |
| Temperature range | -30 °C to +80 °C |
