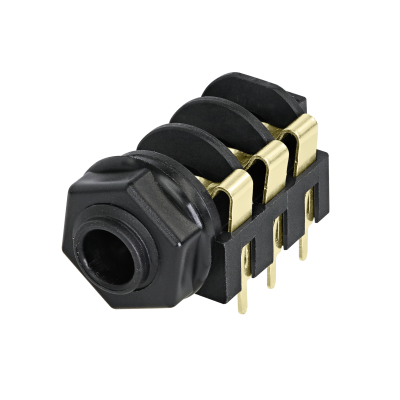

NMJ6HFD2-AU
1/4" stereo jack, switched, full threaded nose, straight PCB pins, gold plated contacts, mounting nut included
Selection of topics
Features & Benefits
Downloads
Distributor Stock Search
Technical Information
Accessories
Features & Benefits
- Wide body and extremely durable contacts
- Mates with all stereo A-gauge plugs acc. EIA RS-453 standard
Distributor stock search
Enter part number and search Neutrik USA distributor's stock.
Technical Information
| Product | |
| Title | NMJ6HFD2-AU |
| Connection Type | Jack |
| Gender | female |
| Electrical | |
| Contact resistance | < 15 mΩ |
| Contact resistance | < 30 mΩ |
| Insulation resistance | ≥ 1 GΩ @ 500 V dc |
| Rated current per contact | 3 A |
| Rated current per contact | 0.50 A @ 50 V (Switch contact) |
| Switching contacts | 3 |
| Mechanical | |
| Insertion force | < 30 N |
| Withdrawal force | >10 N |
| Lifetime | > 10000 mating cycles |
| Panel thickness | < 3 mm |
| Wiresize | |
| Wiring | Horizontal PCB mount |
| Locking device | Retention spring |
| Mounting direction | Rear mounting |
| Chassis shape | 11.2 mm |
| Material | |
| Cap / Nut / Washer | PA 6.6 15% GR |
| Contact plating | 0.2 µm Au |
| Contacts | Bronze (CuSn6) |
| Shell | Polyamide (PA 6.6 30 % GR) UL 94 V0 |
| Environmental | |
| Standard compliance | EIA RS 453, IEC 60603-11 |
| Solderability | Complies with IEC 60068-2-20 |
| Temperature range | -25 °C to +70 °C |
