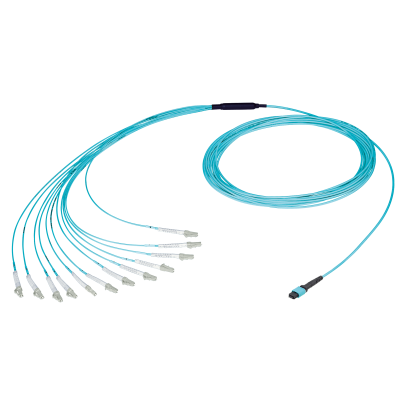

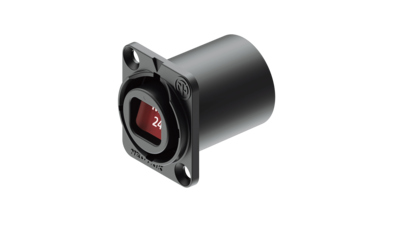

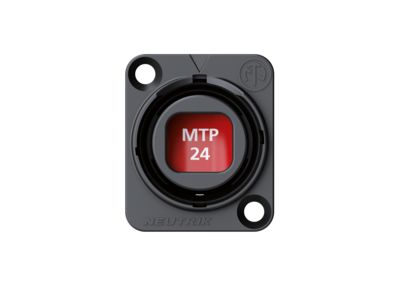

The rear compatibility of opticalCON MTP® 24 chassis fitting with standard MTP® 24 (ELITE male with 20 N springforce) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NO24FDW-A |
| Gender | female |
| Mechanical | |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 2'500 mating cycles |
| Locking force | 1'000 N |
| Wiresize | |
| Locking device | Push-Pull |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Environmental | |
| Temperature range | -40 °C to +75 °C |

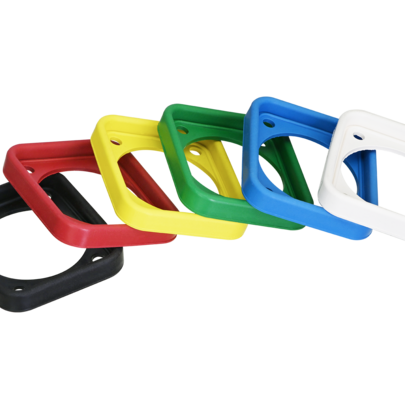

| Protection class | IP65 in mated condition in combination with SCDP-* |
| Optical | |
| Insertion loss | < 0.9 dB / connection |
