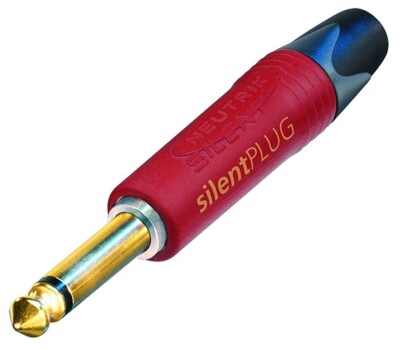

2 pole 1/4" professional phone plug, gold plated contacts, red rubber overlay, silent switch
The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 1'000 mating cycles. The new PX silentPLUG features a rugged metal shell enhanced with a rubber cushion overlay for improved shock protection.
ATTENTION!
For use with instrument (guitar) applications only. Damage may occur if connected to amplifier output.
Please note that the signal isn't muted with some types of active electric guitars which are equipped with tip-ring-sleeve jacks that tap to activate the guitar power supply.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NP2XX-SILENT |
| Connection type | plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 0.2 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | < 50 V |
| Mechanical | |
| Cable O.D. | 4 - 7 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize (mm / AWG) | 1 mm² / 18 AWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | PP + PA6 |
| Contact plating | 0.2 μm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | TPE + PA6 |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +65 °C |
