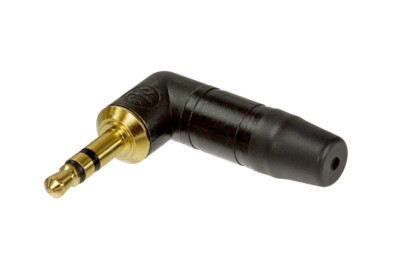

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, black housing, gold contacts
The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
Enter part number and search Neutrik USA distributor's stock.
| Product | |
| Title | NTP3RC-B |
| Connection Type | Plug |
| Gender | male |
| Electrical | |
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated voltage | <50 V |
| Mechanical | |
| Cable O.D. | 2 - 4.5 mm |
| Wiresize | 0,22 mm² |
| Wiresize | 24 AWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Brass (CuZn39Pb3) + PU, black Cr |
| Contact plating | 0.2 µm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 15 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +65 °C |
