12 channel MTP® based fiber system, improved bending performance due to new tactical fiber design, black matt outer jacket, available in multi- and single-mode (PC or APC).
Besides extreme applications there is also a demand for quality fiber connections for semi-rugged applications as e.g. patching or permanent installations. Such applications require a focus on costs and a sealing shutter is not required. The opticalCON MTP LITE offers high performance and a cost effective, compact, and light weight design. It is fully compatible with the standard opticalCON MTP chassis connector.

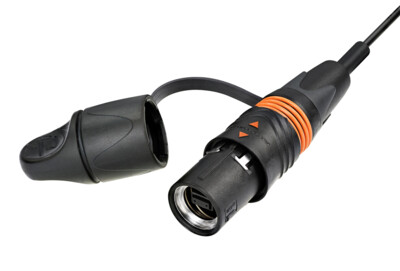

The opticalCON MTP® LITE cable connector accommodates USCONEC Elite female ferrules in a durable plastic housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and comes with an airspool packaging.
Conventional patch cables are sensitive in terms of undercutting the minimum bending radius and lateral pressure. Neutrik’s tactical patch cables contain a unique fiber design including a protection layer which allows bending with minimal radius and increased lateral pressure. Therefore the tactical patch cables are the right choice for permanent or semi-permanent applications.
Enter part number and search Neutrik USA distributor's stock.
Product | |
Title | opticalCON MTP® 12 LITE |
Connection Type | opticalCON |
Gender | male |
Mechanical | |
Cable retention | > 250 N |
Insertion force | < 45 N |
Withdrawal force | < 45 N |
Lifetime (typ.) | 1500 mating cycles |
Wiresize | |
Locking device | Push-Pull |
Material | |
Boot | Rubber (EPDM) |
Bushing | Polyamide (PA 6) & Thermoplastic elastomer (TPU) |
Insert | PBT |
Shell | PBT |
Strain relief | CuZn36 Pb3 (Brass) |
Dust protection cap | Rubber (EPDM) |
Environmental | |
Temperature range | -40 °C to +70 °C |
Optical wiring | ISO / IEC 11801 |
Protection class | in mated condition IP65 |
Optical | |
Insertion loss | < 0.45 dB / connection |
Optical connector | USCONEC Elite female (PC and APC) |
Optical return loss | > 50 dB (PC) > 60 dB (APC) |
Mobile cable | |
Colour | black, matte |
Core diameter | Single mode 9 µm, Multimode 50 µm |
Cladding diameter | 125 µm PVC |
minimal bending radius | 3.5 cm |
Cable retention | Aramid yarn |
Weigth | 12.6 kg/km |
Overal diameter | 3.5 mm |
