neutrik-us > Products > powerCON® > powerCON® Accessories > SCNAC-02

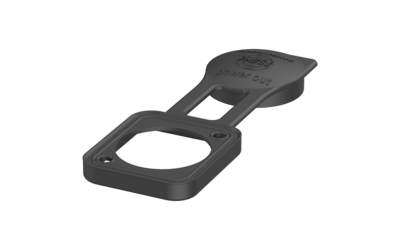

SCNAC-02

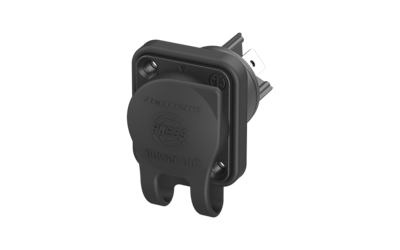

SCNAC-02 assembled

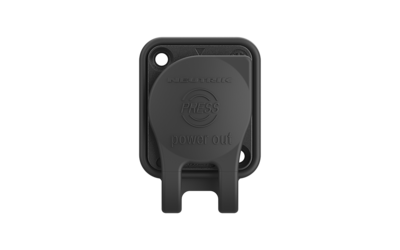

powerCON_SCNAC-02-sealing_front_RGB_WEB

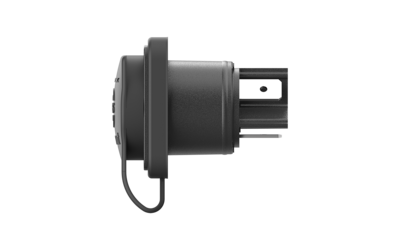

powerCON_SCNAC-02-sealing_side_RGB_WEB
SCNAC-02
SCNAC-02 assembled
powerCON_SCNAC-02-sealing_front_RGB_WEB
powerCON_SCNAC-02-sealing_side_RGB_WEB

SCNAC-02

NEW: The D-size rubber sealing cover protects the powerCON 20A chassis connectors NAC3MPXXB* and NAC3MPB-* from dust and water according to protection class IP 65. User friendly and easy to assemble, its compact frame allows for high packing density.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information
Download Data Sheet

Features & Benefits

  • IP 65 water and dust proof test passed for 15 mins with vacuum (-0.2bar) in closed condition, suitable for lighting industry
  • UV-resistant material for use in harsh outdoor environment
  • Allows high packaging density on the chassis
  • User friendly, easier to assemble

Downloads

  • 2D Drawing SCNAC-02 (PDF)
  • Drawing SCNAC-02 (DXF)
  • Assembly Instruction: Sealing Cover SCNAC-*

Technical Information

Product
Title SCNAC-02
Material
Material EPDM
Color Black
Marking Power out
Environmental
Flammability acc. to UL 94 HB
Protection class acc. to IEC 60529 IP 65
